Cult-Werk Rear conversion CUSTOM V1 (Touring 2014+)

Complete original Cult-Werk rear conversion "Custom" V1 incl. mounting kit suitable for Harley-Davidson Touring models from 2014 onwards (Street Glide‚Ñ¢, Road Glide‚Ñ¢ & Road King‚Ñ¢ - also special versions as well as Ultra and Limited)!

IMPORTANT: The rear conversion NOW comes with a wiring harness including a resistor for the correct flashing frequency! The conversion is therefore absolutely PLUG AND PLAY! The original license plate lighting must be used and connected to the wiring harness on the existing wires (red & black)!

This Cult-Werk rear conversion is an ABS plastic part and is made using the latest technology 5-axis machining centers CNC milled! This ensures that these parts are of original equipment quality. No cheap GRP! You can have the plastic part painted immediately in a paintable version, which in turn is very cheap because it is a perfect surface! The complete conversion kit consists of a rear fender including a mounting kit as well as integrated LED tail and brake lights and indicators.

The rear fender "Custom" V1 was visually very elaborately designed! The Cult-Werk rear is characterized by its very easy assembly. It is best to remove the side cases at the rear before assembly, then mount the ABS rear fender over the original metal fender and fasten it with the original seat screws! In addition, the supplied sheet metal holders are screwed on to attach the fender to the frame. Before final assembly of the ABS fender, the LED lights must be attached (these must be glued in - silicone or any other adhesive) and the wiring and laying of the cable harness must be carried out.

The following two surface variants are available for this rear conversion:

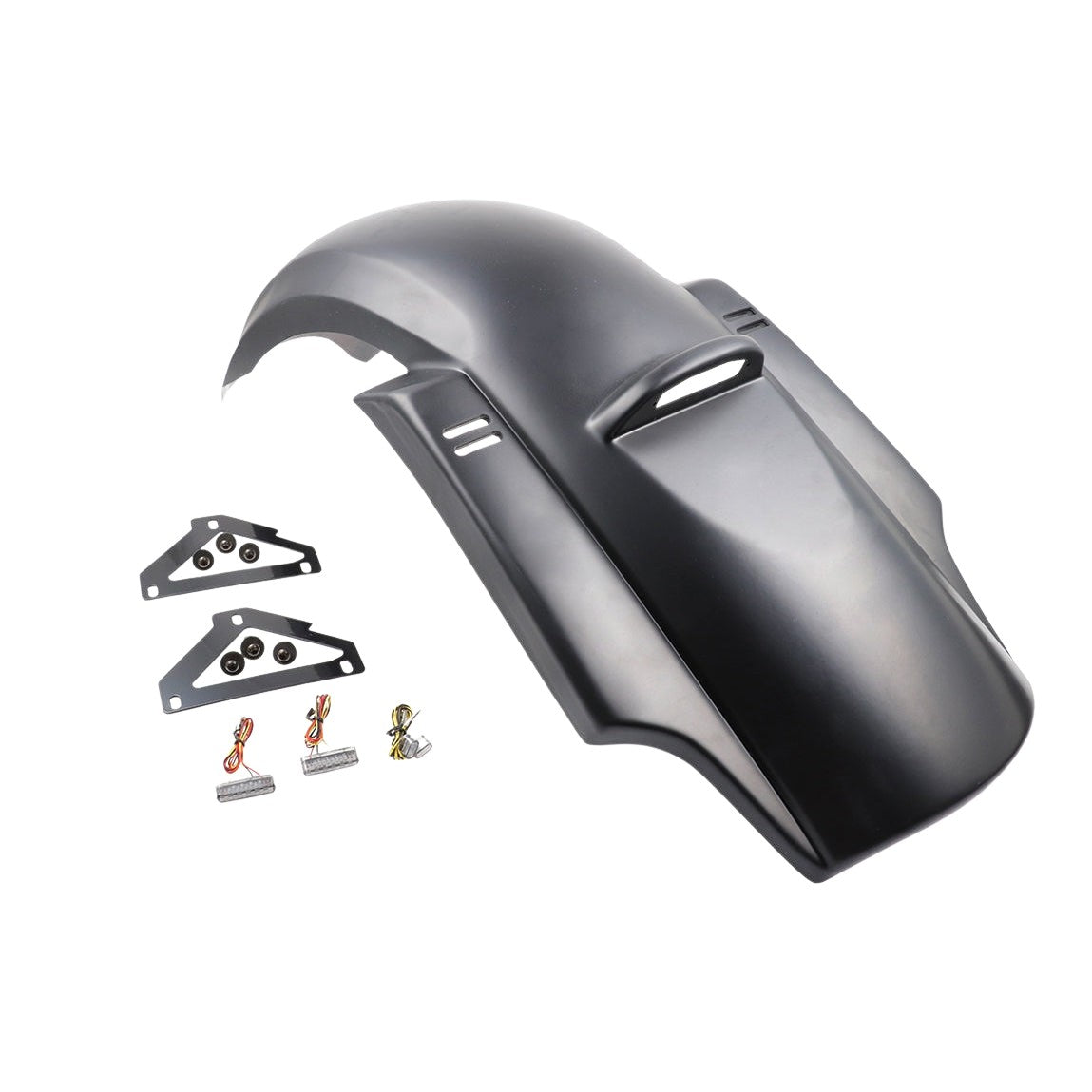

- Paintable (Minimal painting effort 'Äì as perfect surface quality! The fender is delivered ready for painting and can be √§Can be painted immediately!)

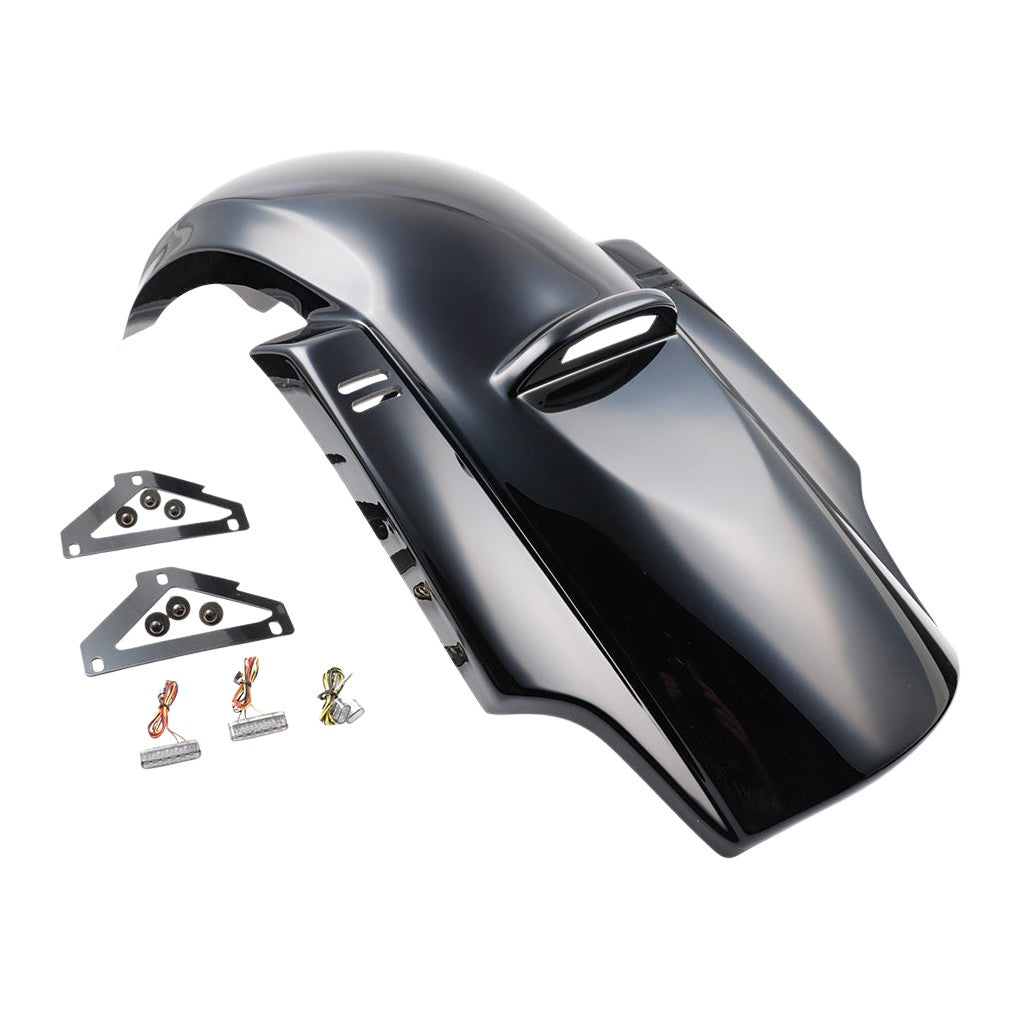

- Glossy black (No longer needs to be painted - so you save the entire painting costs! Remove the protective film and the fender shines in glossy black!)

The scope of delivery includes the following parts:
- ABS rear fender
- 2x LED tail and brake lights 2 in 1 (already on the wiring harness)
- 2x LED Indicator (already on the wiring harness)
- Mounting material
- 2x holders for stiffening
- Wiring harness including resistor and plug = Plug and Play

THE ASSEMBLY INSTRUCTIONS AND THE PARTS REPORT ARE AVAILABLE IN THE "DOWNLOADS" TAB!! !
