Arnott MC-3105 1991-2007 Harley-Davidson Dyna Smooth Ride Kit

Vendor: ARNOTT
SKU: MC-3105
Please hurry! Only 3 left in stock
$635.00
$635.00

Free Shipping

on orders over $39.99

Free Returns

Most eligible items can be returned within 30 days

PRODUCT FEATURES

  • 2 X 13” black monotube shock absorbers
  • Multi-ply Goodyear® air springs protected by aluminum covers

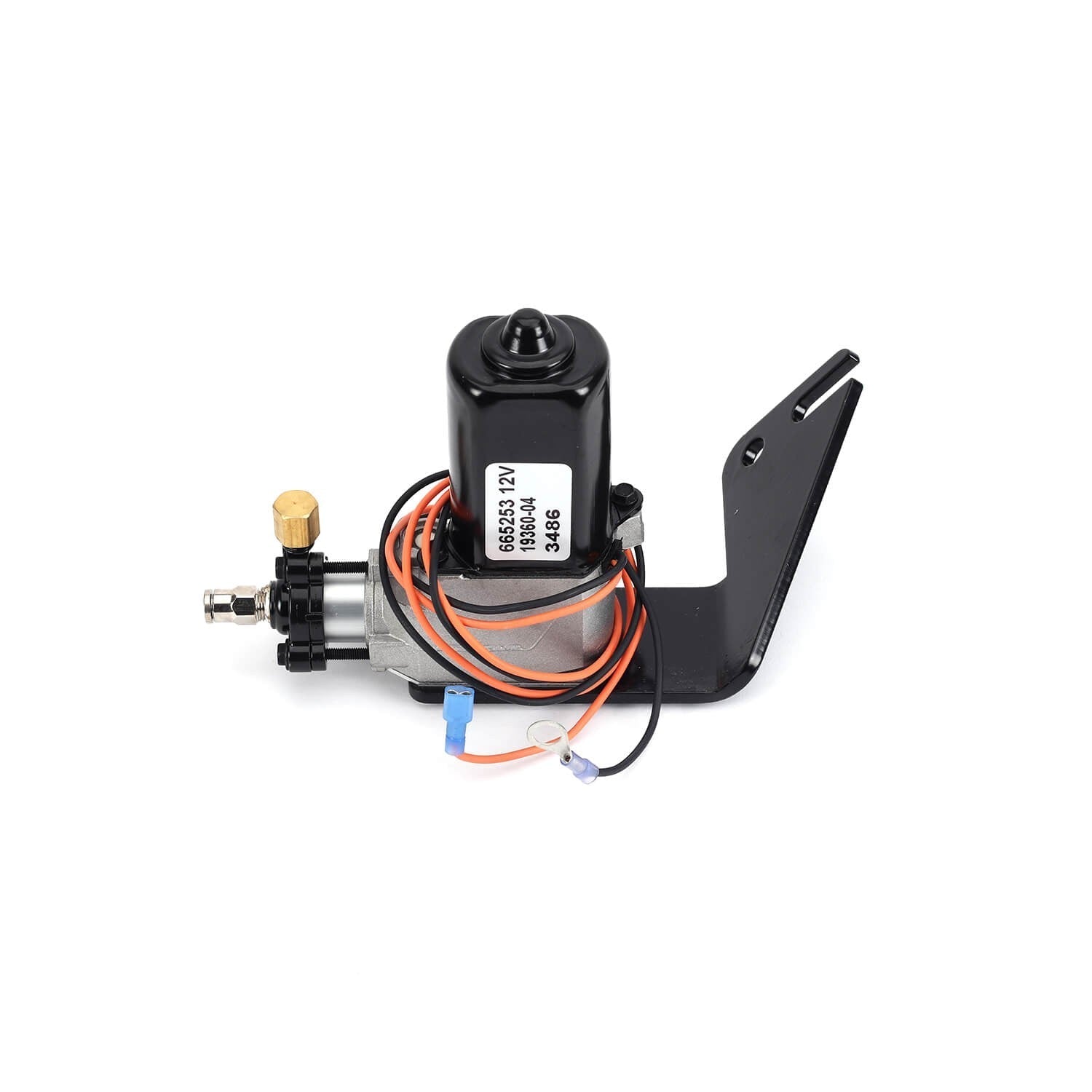

  • Thomas high output compressor w/application-specific bracket
  • Aircraft quality billet aluminum construction
  • Micro-toggle inflation switch
  • Detailed installation manual
  • Limited Lifetime Warranty
  • Made & tested in the USA
  • 3.10-inch travel: 13-inch extended, 9.90-inch collapsed

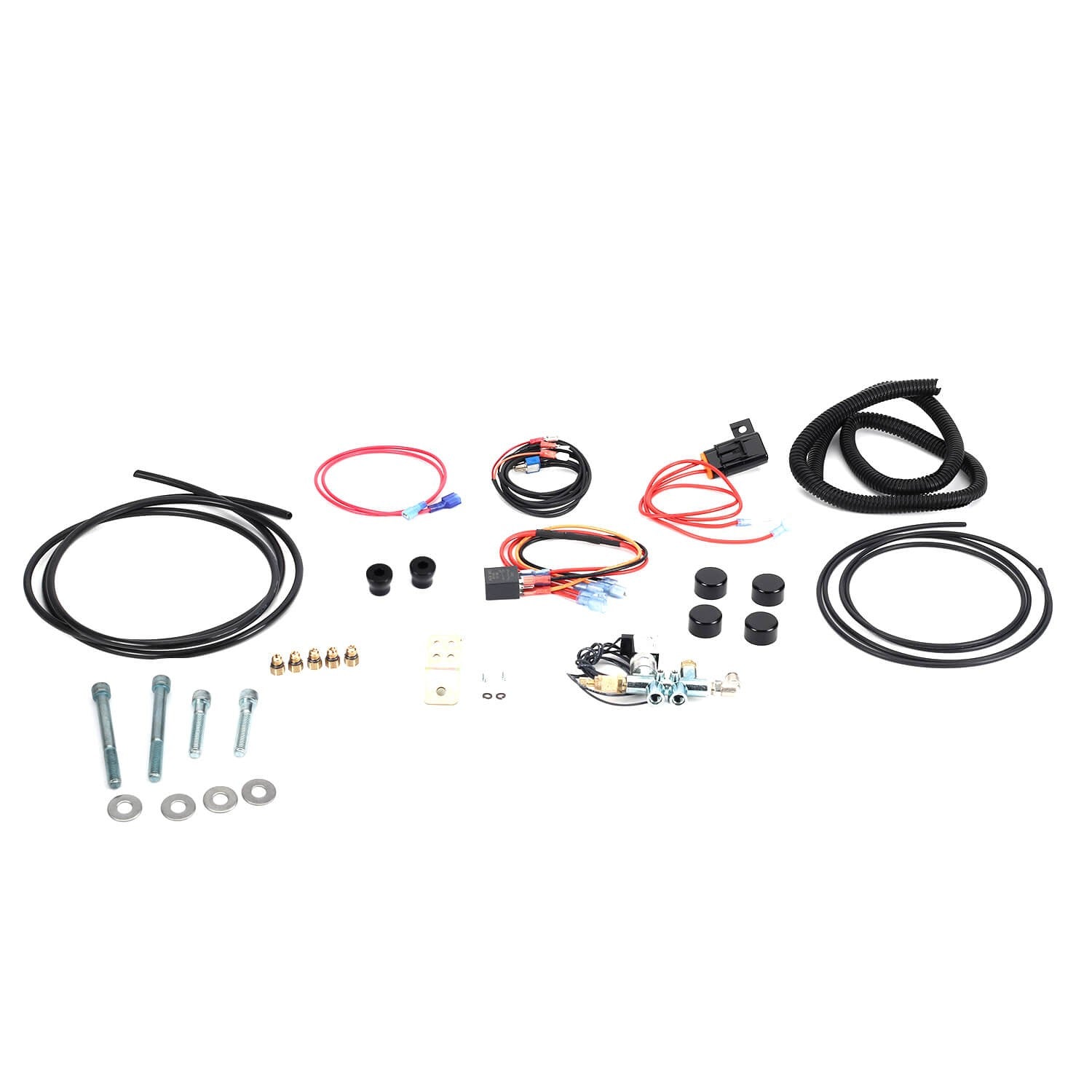

INCLUDES

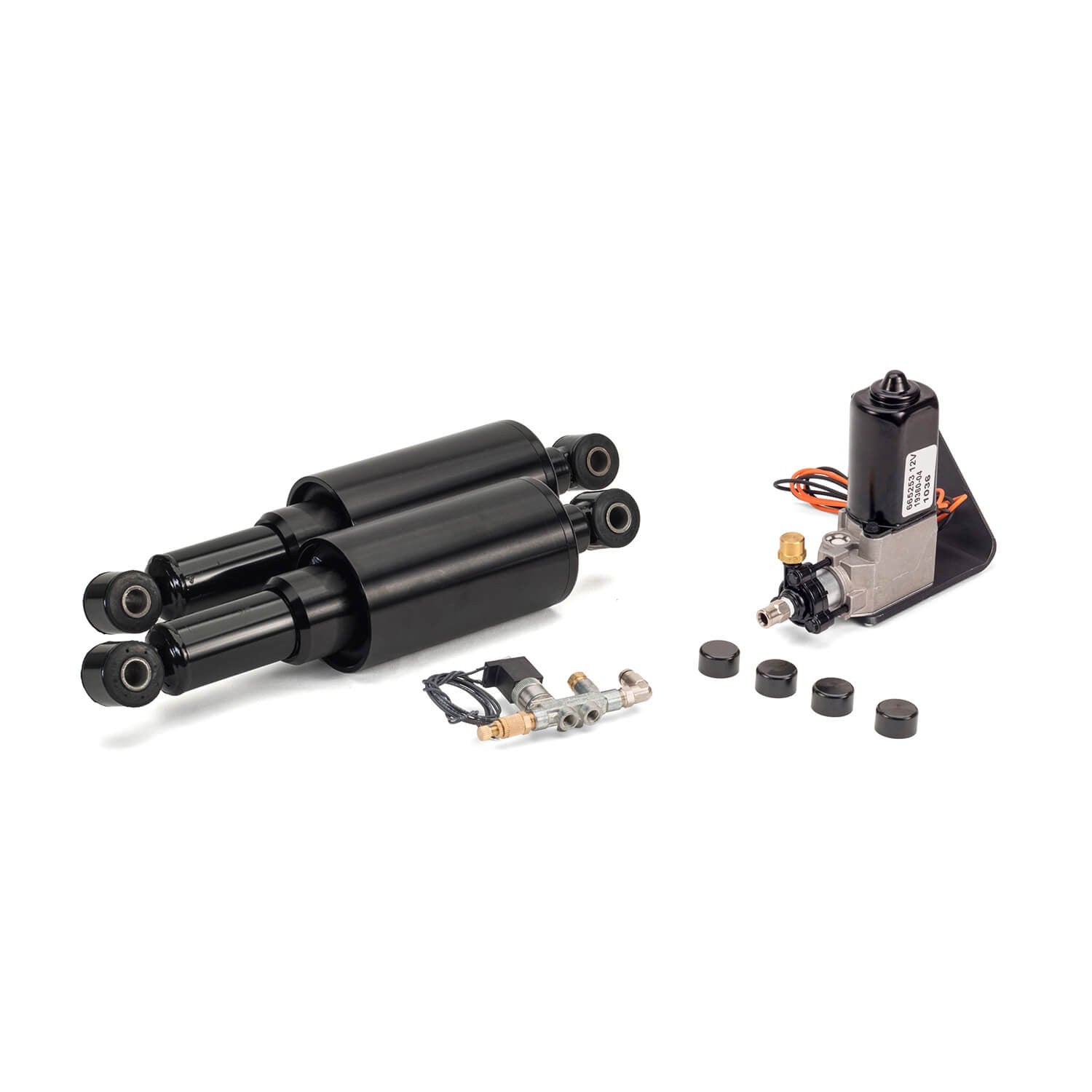

  • 2 black shock absorbers w/multi-ply Goodyear air spring sleeves
  • Thomas high output compressor w/application-specific bracket
  • Micro-toggle inflation switch

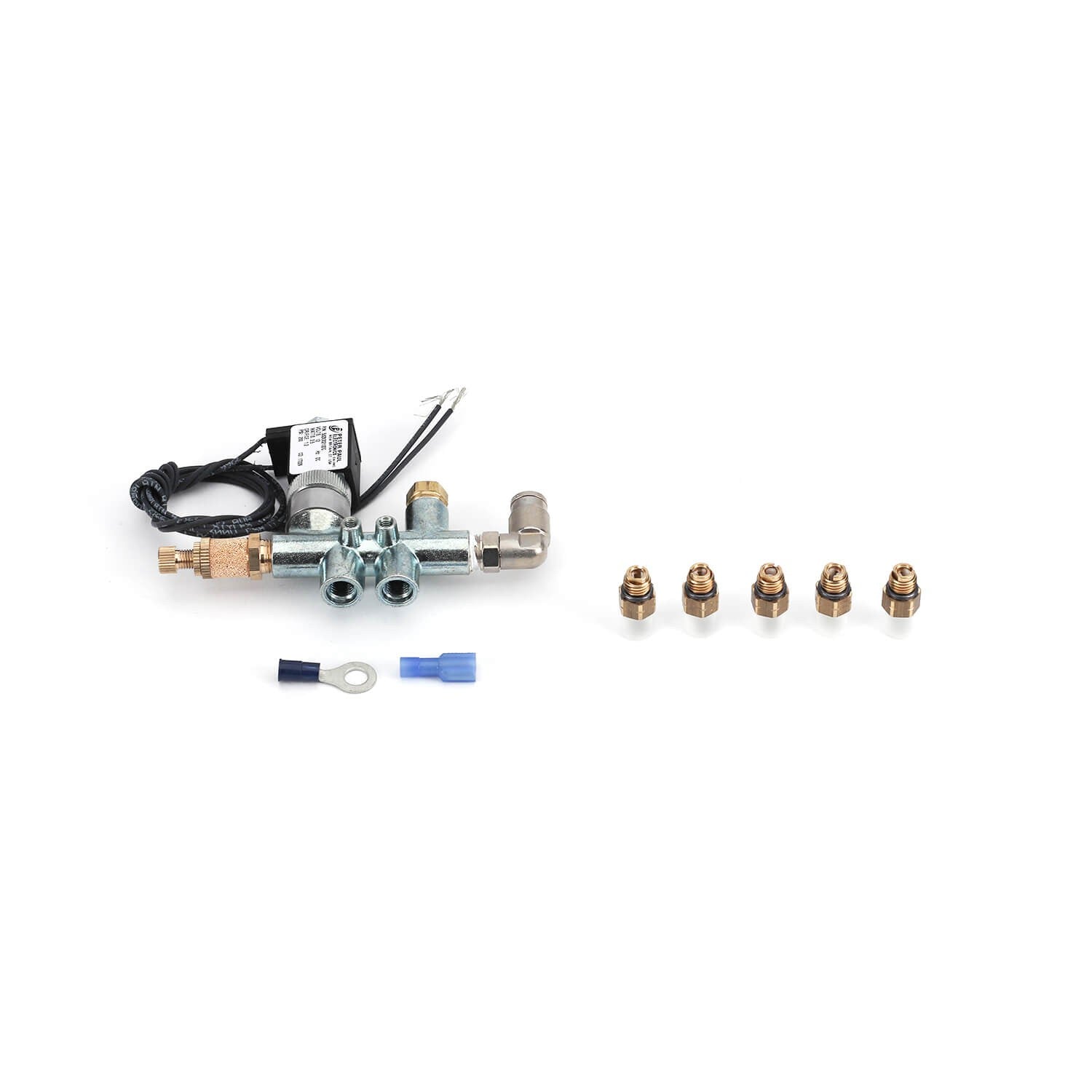

  • Air distribution valve w/air speed control muffler
  • VOSS air line fittings
  • Fused wiring harness & relay assembly
  • All necessary mounting hardware
  • Black bolt covers
  • Nylon air line tubing
  • Protective nylon split loom
  • Cable ties
  • Detailed installation manual

The affordable Arnott® Smooth Ride Series adjustable motorcycle air suspension kit offers a crisp, sporty ride plus the luxury of inflating or deflating your rear shocks with an onboard compressor and switch.

Ideal for shorter riders, individuals with mobility issues, or those who are looking for a slammed look while parked, this Smooth Ride kit offers over 3” of travel. With a flick of the onboard toggle switch, you can raise or lower your bike to rest flat-footed while stopped or maneuvering your bike for parking.

At the core of this system are two custom-valved 13” nitrogen charged, monotube shock absorbers with an Internal Floating Piston (IFP) to separate the gas from the oil which eliminates oil foaming and cavitation for a better ride. Using a patent-pending design, Arnott adds a rugged Goodyear® air spring to provide the flexibility of setting the height of your rear suspension based on your weight, size, road conditions, and riding preference, helping you to ensure safety through enhanced control and stability.

Arnott pairs your shocks with a small but powerful compressor, custom-designed mounting bracket, and air distribution valve block which includes a muffler to control how fast air is released. Each kit includes everything you need for a fast and flawless installation; user manual, fused wiring harness, and relay assembly, all necessary tubing, cable ties, fittings, bolt covers, protective aluminum covers, and mounting accessories. Each shock is custom-crafted and rigorously tested in Arnott’s Florida manufacturing facility and is backed by Arnott’s Limited Lifetime Warranty.

Ride Series: Smooth Ride

Shock Color: Black

Optional Rebound Adjustment: No

Size: Standard

Minimum Length: 9.90"

Maximum Length: 13.00"

Travel Length: 3.10"

Air Spring: Multi-Ply Goodyear

Shock Damper: Arnott

Shock Construction: Steel Body Damper w/CNC Billet Aluminum Components

Ride Comparison: Sporty/Improvement Over OE Shocks

Reduces Painful Bottoming: Yes

Bottoming Bumper: Rubber

Color Coordinated Bolt Covers: Yes

Adjustable Deflation Speed: Yes

Air Distribution Manifold w/Integrated Release Valve: Yes

30-Day Satisfaction Guarantee: Yes
