Arnott MC-3103 2008-2017 Harley-Davidson Dyna Ultimate Ride Kit (Chrome)

Vendor: ARNOTT
SKU: MC-3103
Please hurry! Only 3 left in stock
$1,374.00
$1,374.00

Free Shipping

on orders over $39.99

Free Returns

Most eligible items can be returned within 30 days

PRODUCT FEATURES

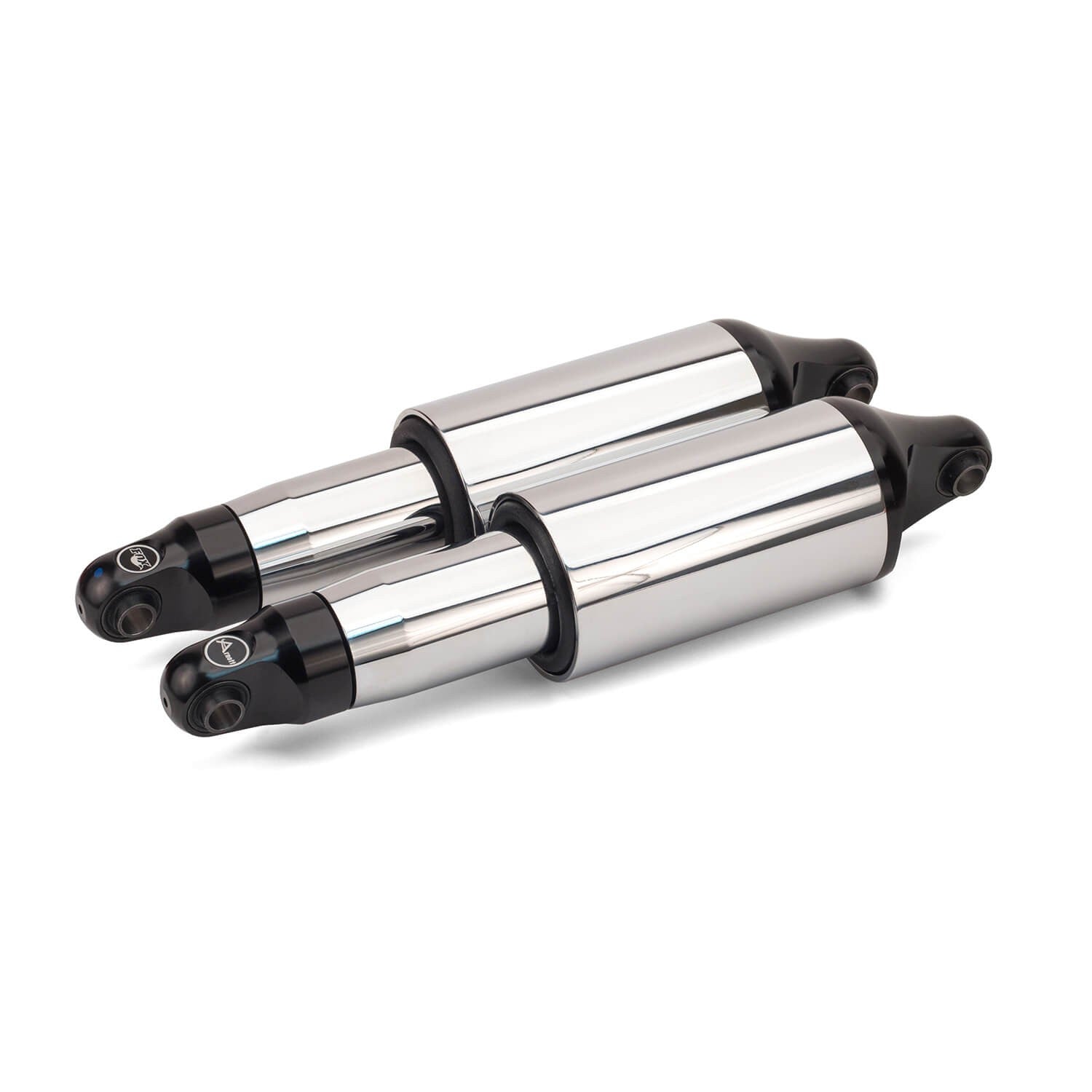

  • 2 chrome FOX® shock absorbers
  • Goodyear® air spring sleeves

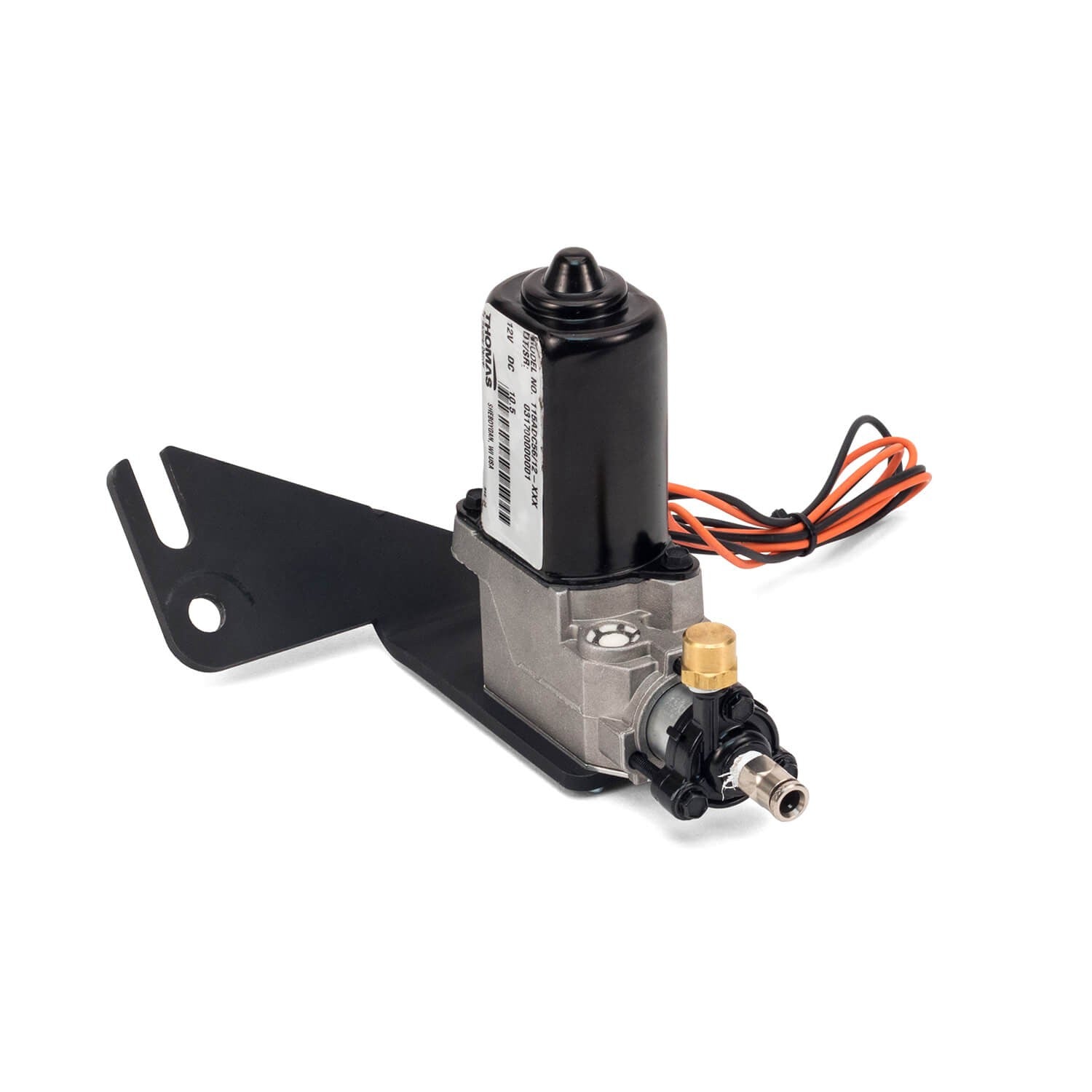

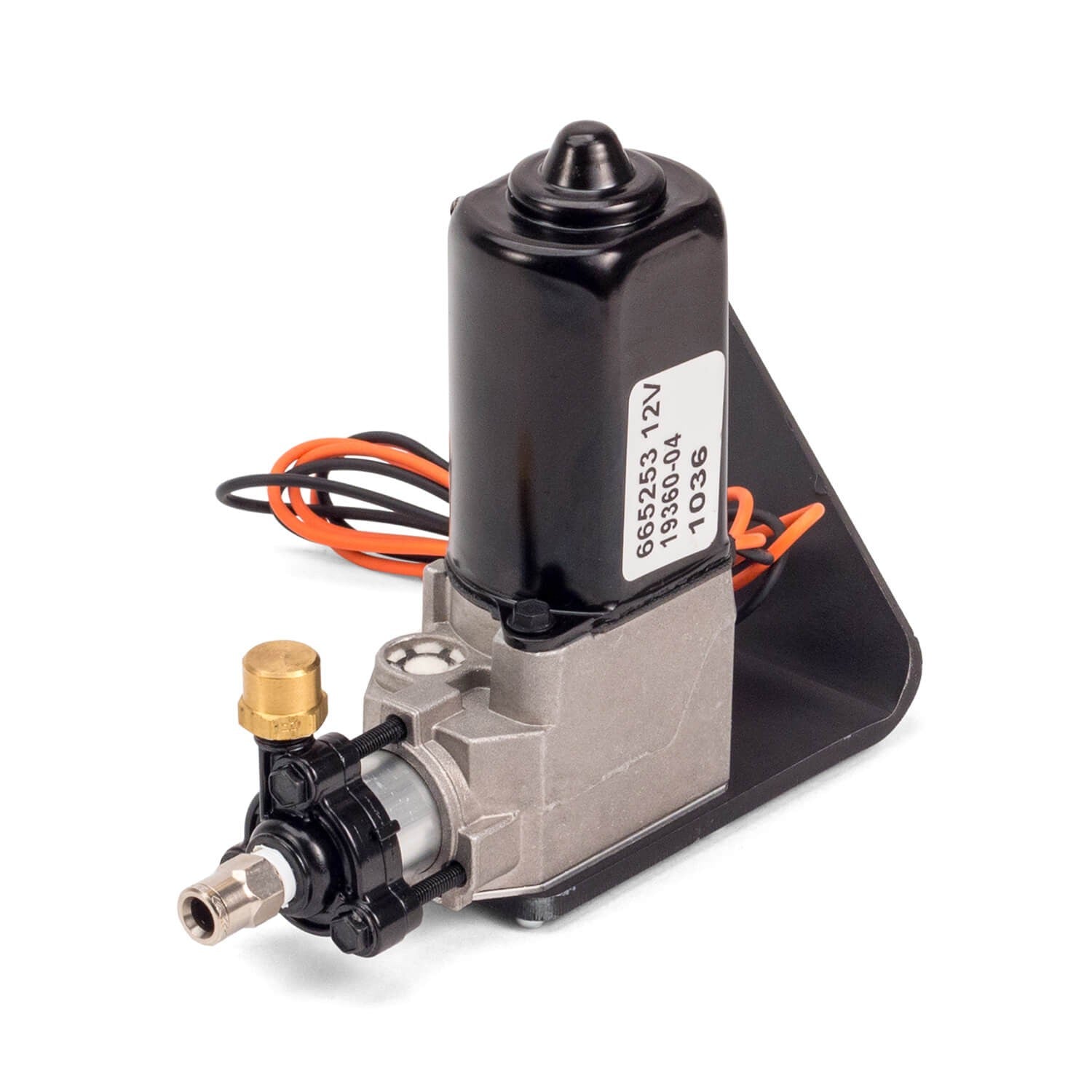

  • Thomas high output compressor w/application-specific bracket
  • 6061-T6 billet aluminum construction
  • Handlebar-mounted inflation switch
  • Engineered for motorcycles
  • Even fully deflated, fender won’t touch tire
  • Made & tested in USA

INCLUDES

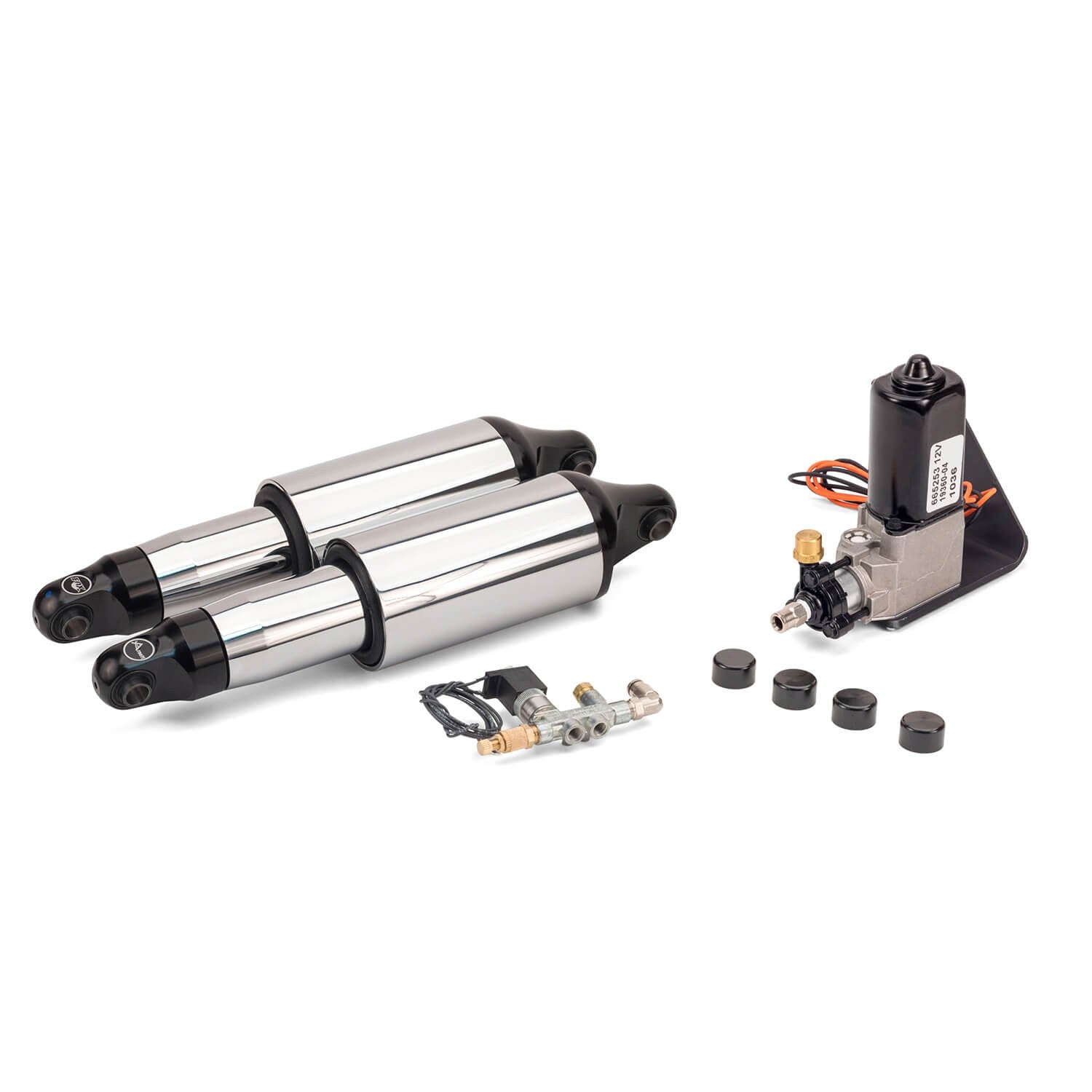

  • 2 chrome FOX shock absorbers with multi-ply Goodyear air spring sleeves
  • Thomas high output compressor w/application-specific bracket
  • Chrome handlebar-mounted inflation switch
  • Air distribution valve w/air speed control muffler

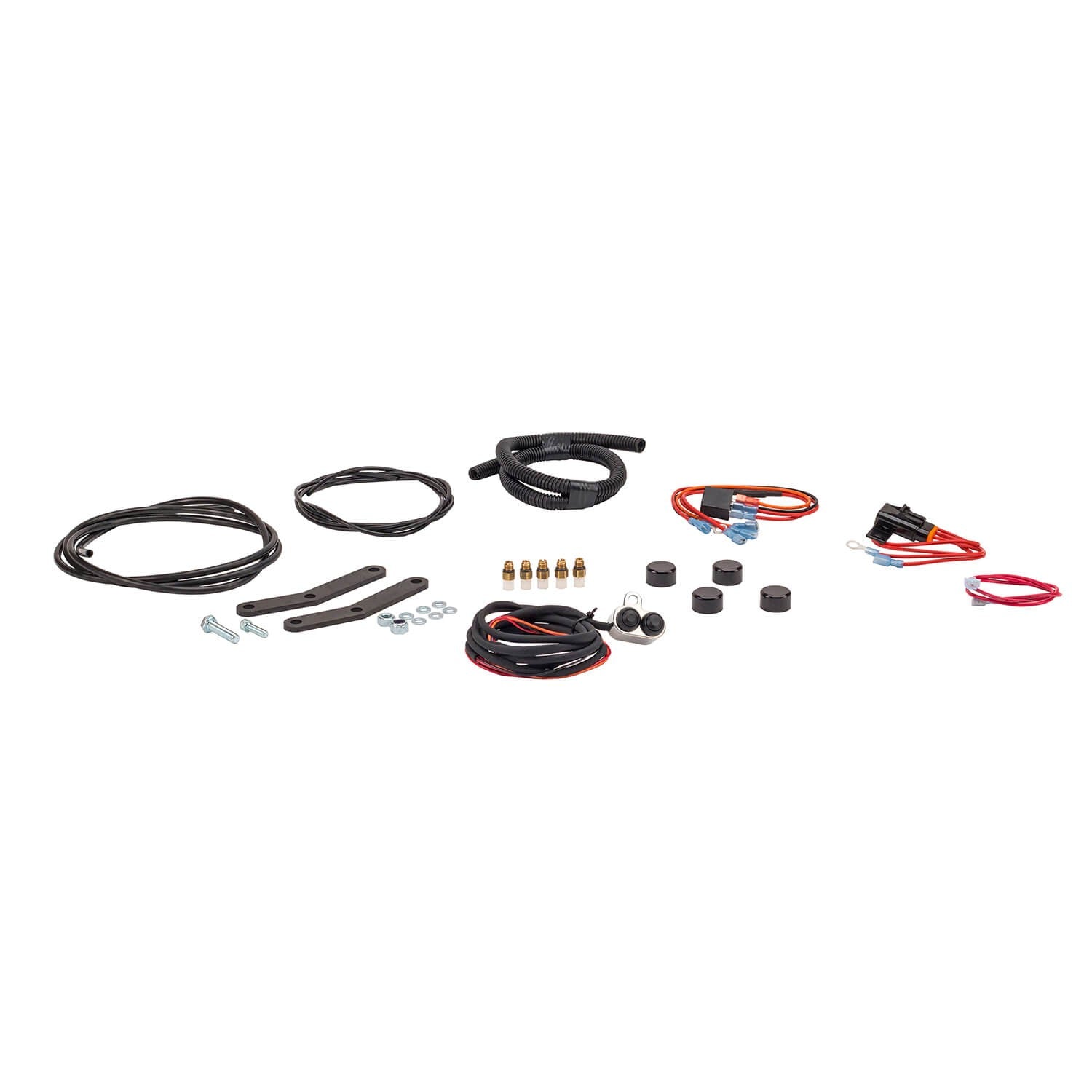

  • Fused wiring harness & relay assembly
  • Mounting bracket
  • All necessary mounting hardware
  • Nylon air line tubing
  • Cable ties
  • Detailed installation manual

Arnott’s new Ultimate Ride Air Suspension Kit for Harley-Davidson® 2008-2017 Dyna® Models has been custom designed to provide the rider with superior control, ride comfort, and height adjustability. The kit, featuring Arnott’s TruAIR® Technology, includes a rugged air spring sleeve.

At the core of this system are two custom nitrogen-charged FOX® shock absorbers. Then, using a patent-pending design, Arnott adds a rugged Goodyear® air spring, ensuring superior comfort, ride quality, and durability. Arnott pairs your shocks with a small but powerful compressor, application-specific mounting bracket, and air distribution valve block which includes a muffler to control how fast air is released. Each kit includes everything you need for a fast and flawless installation including a detailed installation manual, fused wiring harness, and relay assembly, handlebar-mounted inflation switch, all necessary tubing, cable ties, fittings, bolt covers, and mounting accessories. Each shock is custom-crafted and rigorously tested in Arnott’s Florida manufacturing facility and is backed by Arnott’s Limited Lifetime Warranty.

Ride Series: Ultimate Ride

Shock Color: Chrome

Optional Rebound Adjustment: No

Size: Standard

Minimum Length: 9.70"

Maximum Length: 13.00"

Travel Length: 3.30"

Air Spring: Multi-Ply Goodyear

Shock Damper: FOX

Shock Construction: All CNC Billet Aluminum Components

Ride Comparison: Comfortable/Luxurious

Reduces Painful Bottoming: Yes

Bottoming Bumper: Urethane

Color Coordinated Bolt Covers: Yes

Adjustable Deflation Speed: Yes

Air Distribution Manifold w/Integrated Release Valve: Yes

30-Day Satisfaction Guarantee: Yes
