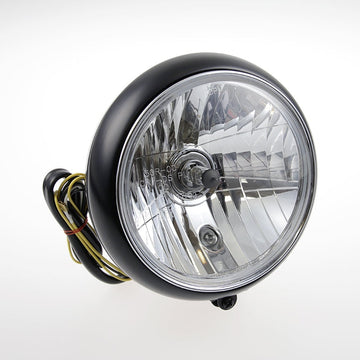

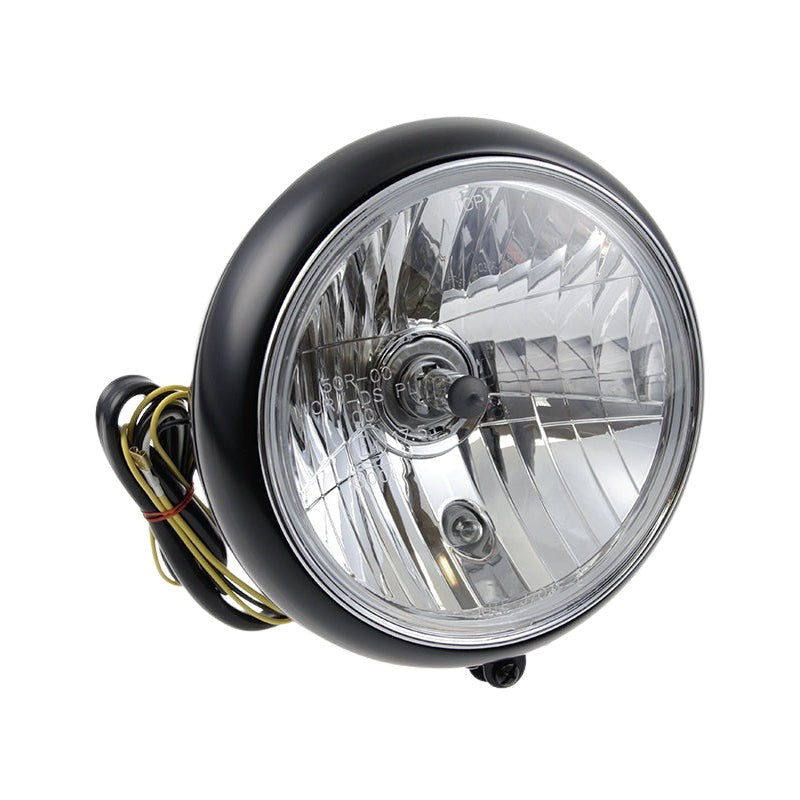

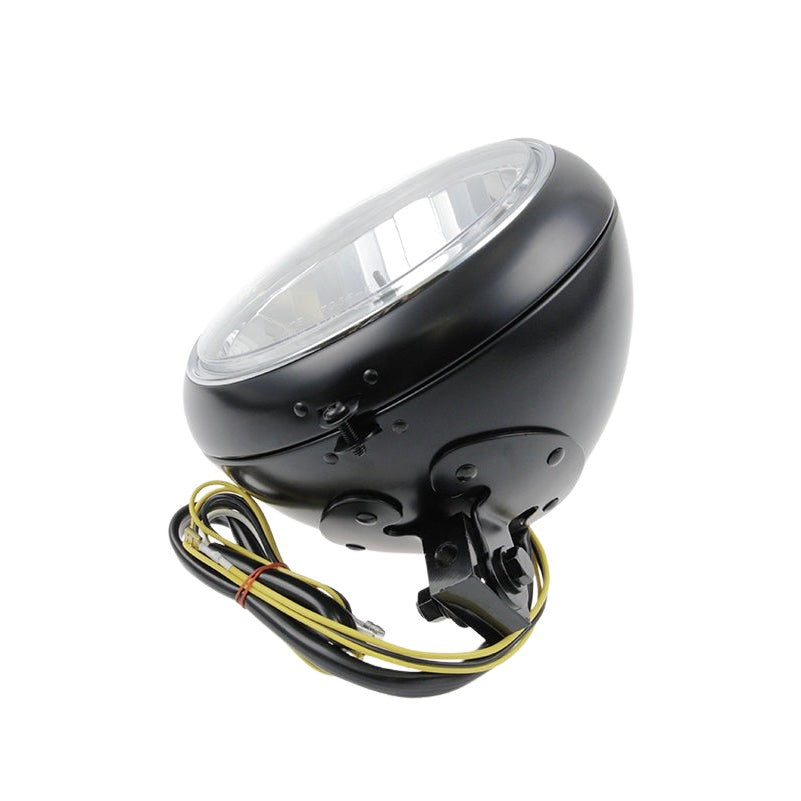

Cult-Werk 7" Headlight, Black With Clear Glass (Sportster)

The headlight from Cult-Werk is suitable for all Harley-Davidson models where it is attached to the middle of the lower fork bridge with a screw. In addition, our side speedometer holder (HD-SPO037) must be used on models to create enough space for the significantly larger headlight! 7" H4 headlight in a black matt metal housing with prism reflector and clear lens for optimal light output. Very simple and quick installation, simply exchange for the original Harley headlight!

Cable assignment:
H4 bulb 4 cables in black case:
Thick black cable = ground
Yellow cable = low beam
White cable = high beam
Thin black cable  = additional lighting ( if necessary)

Separate yellow cable for the H4 bulb for connection as an additional light (if necessary)

2 cables for Parking light:
Black cable = ground
Yellow cable = plus
